Introduction

Bitumen (asphalt binder) is graded by different systems to ensure pavements meet local needs. The main grading systems are Penetration Grades, Viscosity Grades (VG), and Performance Grades (PG). Each system uses different tests and acceptance criteria. For civil engineers and students, selecting the right binder requires understanding how each grade is defined, what the numbers mean, and where each system performs best in terms of climate and construction conditions.

Penetration Grade Bitumen

Definition & Measurement: The penetration grade measures the hardness/softness of bitumen using a standardized needle test at 25°C. A 100 g needle is allowed to penetrate the binder for 5 seconds and the depth (reported in tenths of a millimeter, dmm) is recorded. For example, a grade "60/70" means the needle penetrates between 60 and 70 dmm under the test condition.

Grade Meaning

Higher penetration numbers indicate a softer binder; lower numbers indicate a harder binder. Typical penetration grades include: 30/40, 40/50, 60/70, 80/100, and 100/120. A penetration grade is empirical: it provides a quick measure of consistency at 25°C but does not directly measure temperature susceptibility across service conditions.

Typical Uses

• Widely used for paving (base and wearing courses) in many countries.
• Forms the basis for cutbacks and emulsions when heated or blended for specific applications.
• Common in regions where historical specifications and local standards are penetration-based.

Climatic Suitability

• Soft penetration grades (higher numbers, e.g., 80/100) are preferred in cold climates for flexibility.
• Hard penetration grades (lower numbers, e.g., 30/40 or 40/50) are used in hot climates to resist softening and rutting.
• Rule of thumb: high-penetration (soft) = cold climate; low-penetration (hard) = warm climate.

Pros & Cons

• Pros: Simple, inexpensive test; well-established in many national standards.
• Cons: Single-temperature test (25°C) — limited prediction of field performance at hot or cold extremes; does not directly indicate rutting or low-temperature cracking resistance.

Viscosity Grade (VG) Bitumen

Definition & Measurement: Viscosity grading classifies binders by their flow resistance at elevated temperatures (commonly 60°C) and often includes a viscosity test at 135°C that helps set mixing/compaction temperatures. Common VG designations are VG-10, VG-20, VG-30, VG-40 etc. Older AASHTO/ASTM terms (AC-2.5, AC-5, AC-10) correlate roughly to these VG ranges.

Grade Meaning

Higher VG numbers indicate higher viscosity (stiffer binders). VG-30 is stiffer than VG-10, and VG-40 is stiffer than VG-30. Standards typically specify minimum viscosity values at 60°C and additional properties such as minimum penetration and softening point to control temperature susceptibility.

Typical Uses

• Favored in hot climates and heavy-traffic corridors where stiffness helps resist rutting.
• VG-30 is a common general-purpose grade in tropical/temperate regions; VG-40 for hotter, high-load pavements.
• Lower-viscosity grades (AC-2.5, AC-5 equivalents) are applied in colder regions for flexibility.

Climatic Suitability

VG grading focuses on high-temperature performance. Because it controls mixing and compaction temperatures (via the 135°C test) and specifies viscosity at service temperature (60°C), VG binders are practical for places prone to high pavement temperatures and heavy axle loads.

Pros & Cons

• Pros: Better correlation with high-temperature rutting and construction behavior than simple penetration tests; practical for hot regions and heavy traffic.
• Cons: Still not directly focused on low-temperature cracking resistance; requires viscometer testing (more complex than a needle test).

Performance Grade (PG) Bitumen

Definition & Measurement: The Performance Grade (PG) or Superpave system is performance-based. It classifies binders by rheological performance across temperatures and after aging. PG binders are evaluated using tests like the Dynamic Shear Rheometer (DSR) and Bending Beam Rheometer (BBR) and are reported as PG XX-YY.

Grade Meaning

A PG grade such as PG 64-22 indicates the binder is suitable for pavement design temperatures up to 64°C (high temperature) and down to −22°C (low temperature). The first number targets rutting resistance at high temperatures; the second targets thermal cracking at low temperatures. PG also considers short- and long-term aging.

Typical Uses

• Highways, airport pavements, and heavy-traffic applications where wide temperature ranges and long-term performance are needed.
• Countries with variable climates or where design specs require performance-based selection commonly use PG binders.
• PG grades are especially useful when matching binder selection to local climate data and traffic conditions.

Climatic Suitability

PG explicitly matches climate extremes: choose a PG with a higher first number for very hot environments and a lower second number for extremely cold zones. This lets engineers precisely tailor binders to local hot-day and cold-night conditions.

Pros & Cons

• Pros: Most predictive of field performance across temperature extremes and after aging; robust for rutting, fatigue, and thermal cracking predictions.
• Cons: Complex testing (DSR, BBR, PAV), higher testing cost and technical requirements; wider adoption requires local labs and trained staff.

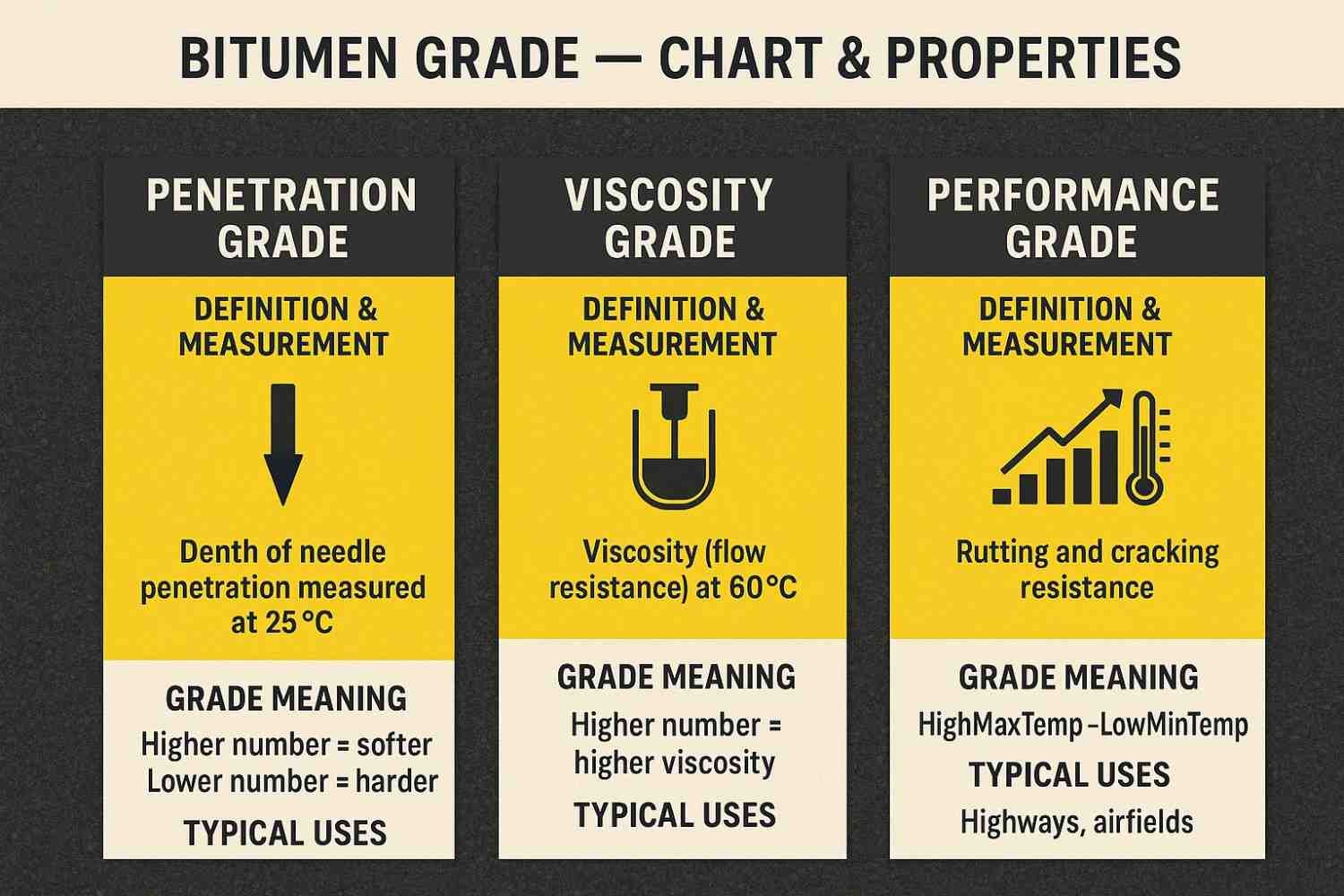

Comparing the Grading Systems

In practical terms:

• Penetration vs Viscosity: Penetration is a simple, single-temperature empirical test (25°C) that indicates consistency. Viscosity grading measures flow at elevated temperatures (60°C and often 135°C) to better control high-temperature performance and mixing/compaction behavior.
• PG vs Penetration/VG: PG is performance-based, testing across multiple temperatures and after aging. It better addresses rutting, fatigue, and thermal cracking than the empirical systems, making it the most comprehensive option for variable climates and critical pavements.

Advantages & Drawbacks (Summary)

• Penetration Grade — Advantages: Simple, widely used. Drawbacks: Single-temperature test; limited prediction of field performance under extremes.
• Viscosity Grade — Advantages: Correlates with high-temperature behavior; controls mixing/compaction temperatures. Drawbacks: Less focus on low-temperature cracking; requires viscometer tests.
• Performance Grade (PG) — Advantages: Performance-based across temps and aging; most predictive for rutting and cracking. Drawbacks: Complex and costlier testing; demands advanced lab capability.

Bitumen Grades for Hot and Cold Climates

Selection rules based on climate and traffic:

• Cold Climates: Use softer binders — higher penetration or lower VG (e.g., Pen 80/100, VG-10/AC-2.5) or PG with a low-temperature rating (lower second number) to avoid thermal cracking.
• Hot Climates: Use harder binders — lower penetration or higher VG (e.g., Pen 30/40, VG-30/VG-40), or higher PG first numbers (e.g., PG 76-22) to resist rutting.
• Temperate / Variable Climates: PG system excels — e.g., PG 64-22 for moderate-warm regions offering safety margins for both seasons.
• Traffic Considerations: Heavy or slow traffic requires stiffer binders; PG allows adjustments based on expected loads and speeds.

Example Recommendations

• Subarctic road: consider Pen 100/150 or VG-10 (flexible in freezing conditions).
• Desert highway: consider Pen 30/40 or VG-40 to prevent rutting; or PG 76-22 for performance-based selection.
• Temperate interstate (hot summers, cold winters): PG 64-22 is a common choice to balance both extremes.
• Extremely cold region (e.g., parts of Canada): PG grades with low-temperature ratings (e.g., –34°C variants) are used.

Key Properties & Specs (Reference)

Engineers typically evaluate these parameters when selecting a binder:

• Penetration (consistency at 25°C)
• Softening Point (temperature susceptibility)
• Viscosity (flow behavior at service temperatures)
• Ductility (ability to stretch without breaking)
• Rheological tests (DSR, BBR) for PG systems
• Short- and long-term aging characteristics

• Always match binder properties to local climate and traffic requirements for reliable pavement performance.
• Follow national standards and project specifications when finalizing bitumen grade selection.

Importance of Correct Grade Selection

• Using the correct grade prevents premature rutting, fatigue cracking, and thermal cracking.
• Performance-based selection (PG) reduces the risk of unexpected failures across seasons.
• Appropriate grade choice improves lifecycle performance and reduces maintenance costs.

Applications

• Highways, interstate pavements, and heavy-traffic urban roads.
• Airport runways and taxiways where long-term performance is critical.
• Waterproofing membranes, roof coatings, and foundation protection (select binder based on service exposure).
• Surface treatments — emulsions and cutbacks for tack coats, prime coats, and chip seals.

Conclusion

In summary, penetration grades are traditional and simple, widely used where local standards rely on empirical measures. Viscosity grades improve control of high-temperature behavior and construction temperatures, making them suitable for hot climates. Finally, Performance Grades (PG) provide the most robust, performance-based approach for environments with wide temperature extremes and where long-term reliability is required. Choose the grading system and specific grade based on climate, traffic loading, and project-critical performance needs.
